DAC-45 4K Up/Down Cross Converter |
 |
|
|
With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness. |
|
| Wide range conversion for great compatibility | Supports 3G-SDI Level A/B |
 |
 |
|
Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion. |
With the 3G-SDI system, it supports both 3G-SDI Level A/B input. |
|
External audio embedding |

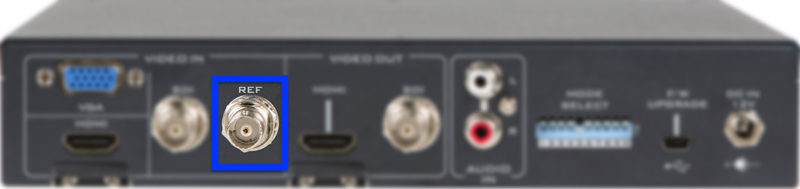

Reference input (Black Burst and Tri-Level Sync.) |
|
|
|
|
RCA inputs allow audio to be embedded to the output of the video signal. |
Supports Black Burst and Tri-Level Sync for all inputs. |
|
Built-in De-interlacer and Interlacer (I/P conversion) |
|
|
BEFORE |
AFTER |
|
Supports I/P conversion to avoid the dense misaligned horizontal lines on the video. |
|
|
Adjustment of HDMI color space The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow
|
|
|
Easy installation on the rack |
|
|
|
|
|
Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack. |
|
|
|
|
Specifications |
| Conversion |
VGA/HDMI/SDI to 4K HDMI/3G-SDI |
| Video Inputs |
1x VGA, 1x HDMI, 1x HD/SD-SDI |
| Video Outputs |
1x SDI, 1x HDMI |
| Audio Inputs |
2x RCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded |
| Audio Outputs |
SDI embedded audio up to 8CH, 48KHz, PCM audio |
| Supported Video Input Formats |
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), |
| Output Resolutions |
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), |
| Equalizer |
Yes |
| Reclock |
Yes |
| SDI Cable Drive |
Yes |
| Dimension (LxWxH) |
220 x 143 x 42 mm |
| Weight |
1 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V, 9.4W |
| What’s in the Box |
1 x DAC-45 |
