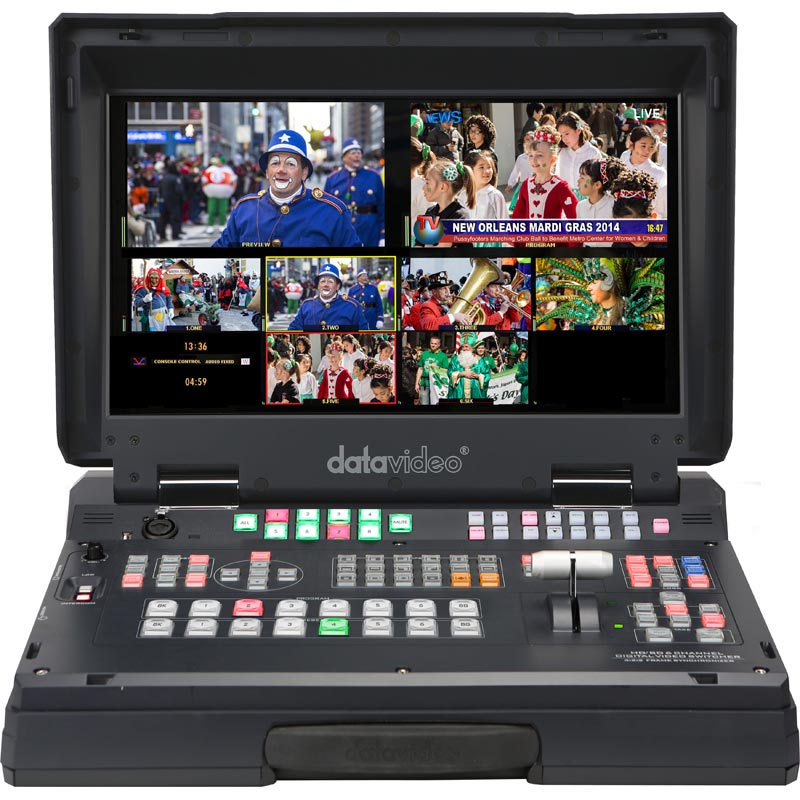

HS-2200 6 input HD broadcast quality Mobile Studio |
| Cost-effective and portable. Perfect for productions using multiple IMAG screens | 6 inputs, 6 outputs. Support for medium to large productions. |
 |
With 6 HDMI and SDI inputs, the HS-2200 has convenient support for most cameras and video input devices, like computers. Coupled with 6 outputs, the HS-2200 is an affordable choice for supporting large productions. Build in Intercome System
|
|
The HS-2200 comes with 6 configurable SDI video outputs. Ideal for live production venues, religious worship, meetings or conference purposes. It’s perfect for sending video to multiple IMAG screens or display monitors. |
Built in 8 Channel Intercom/Talkback system (4 x belt packs supplied) |
|
17.3” LED Backlit Monitor |
Dual PIP and a built-in title creator system |
|
|
|
|
Built-in Monitor Display. 17.3” HD TFT LED backlit monior with resolution 1600×900 pix. |
Works with Datavideo CG systems, PowerPoint and other graphics programmes perfectly. |
|
Professional 10-bit processing switcher |
Real-time clock featuring HH:MM:SS on the multi-screen |
|
|
|
|
Providing you the best and professional quality of video processing. |
Count down counter MM:SS |
|
|
|
Specifications |
| Video Standard |
HD & SD |
| Video Format |
1080i 50/59.94/60Hz |
| Input Routable / Crosspoint |
All 6, repeatable |
| Video Input |
6x HD-SDI, 2x HDMI (on CH5 & 6) |
| Computer Graphic Interface |
2 via HDMI |
| Down-converted Output |
N/A |
| Video Output |
5x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean or multiview |
| Audio Input |
4x Balanced XLR |
| Audio Output |
2x Balanced XLR |
| Embedded Audio Support |
Input up to 16 channels, |
| Audio Delay Calibration |
N/A |
| A+V Switching |
Yes |
| USK |
N/A |
| DSK |
1, support Lumakey & Linear key (Key / Fill) |
| Picture in Picture |
2 |
| Logo Insertion |
2 (or 1 logo + 1 clock) |
| Title Creator |
Yes, CG-200 software free download |
| Built-in Audio Mixer |
N/A |
| Built-in Monitor Display |
17.3” HD TFT LED backlit, 1600×900 pix |
| Built-in Intercom & Tally |
8 channels (4 belt-packs incl.) |
| Special Features |
Built in TC-200 CG interface |
| Dimension (LxWxH) |
455 x 355 x 134 mm |
| Weight |
16.5 Lbs (7.5 kg), Reinforce Plastic Case |
| Power |
DC 12V, 5A |
| Operating Temp. Range |
0~40 °C |
| Options |
CB-22H/23H/46/47/60/61/62 |
| What’s in the Box |
1 x HS-2200 Unit |
