HS-3200 HD Portable Video Streaming Studio

Completely customizable 12 input full HD production switcher	Supports full 1080P with scaling on each available input
	The HS-3200 is Datavideo’s top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input. Create stunning video effects with advanced features

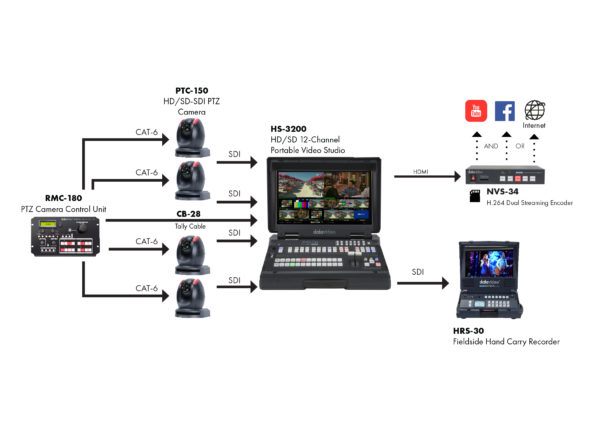

The HS-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (5x SDI+4x HDMI) to help you produce a sophisticated and professional live event.	Advanced features include 8x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent logos or chromakeyers.
Stream to Facebook Live, YouTube, Twitch and more	17.3” LED Backlit Monitor

The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.	Built-in Monitor Display. 17.3” HD TFT LED backlit monior with resolution 1920×1080 pix.
Built-in animations and backgrounds	Included CG Title Creator

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.	All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Custom Multiview Layout & Dual Multiview Output	Flex Source to go that Extra Mile	4 Chromakeyers for a Complete Virtual Studio Experience

Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!	Flex Source gives you the power of a 2 M/E switcher, in a 1 M/E switcher! Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.	Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Specifications

Video Standard	Full HD
Video Format	1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Input Routable / Crosspoint	All 12 repeatable
Video Input	8x SDI 4x HDMI
Computer Graphic Interface	4 via HDMI
Down-converted Output	1x SDI
Video Output	5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI PGM only
Analogue Audio Input	4x Balanced XLR
Analogue Audio Output	2x Balanced XLR
Digital Embedded Audio Support Input	Input 2 channels, Output 4 channels
Audio Delay Calibration	Up to 16 frames
A+V Switching	Yes
USK	4
DSK	2, support Lumakey & Linear key (Key / Fill)
Picture in Picture	8 (4x Keyer, 4x Flex Source)
Logo Insertion	2
Title Creator	Yes, CG-200 software free download
Built-in Audio Mixer	N/A
Built-in Monitor Display	17.3” HD TFT LED backlit, 1920×1080 pix
Built-in Intercom & Tally	N/A
Streaming Video Encode	H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
Streaming Audio Encode	AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16-bit
Streaming Protocol	TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish) SRT
Streaming Control	Web browser UI for configuration and control Socket commands
Recording File System	MP4
Streaming & Recording Setting Control	Web UI for system configuration and control
Special Features	4 Chroma-Key Virtual Studio 9 stinger transition and 4 user preset Built-in TC-200 CG interface Streaming encoder and recorder 12×9 matrix seamless switch
Dimension (LxWxH)	455 x 355 x 134 mm
Weight	17.8 Lbs (8.1 kg), Reinforce Plastic Case
Power	DC 12V, 11A
Operating Temp. Range	0~40 °C
What’s in the Box	1 x HS-3200 Unit 1 x AD Switch DC 12V with AC Cord 1 x Thank You Card
Drive Compatibility	For a list of verified compatible drives, visit the Drive Compatibility Page
