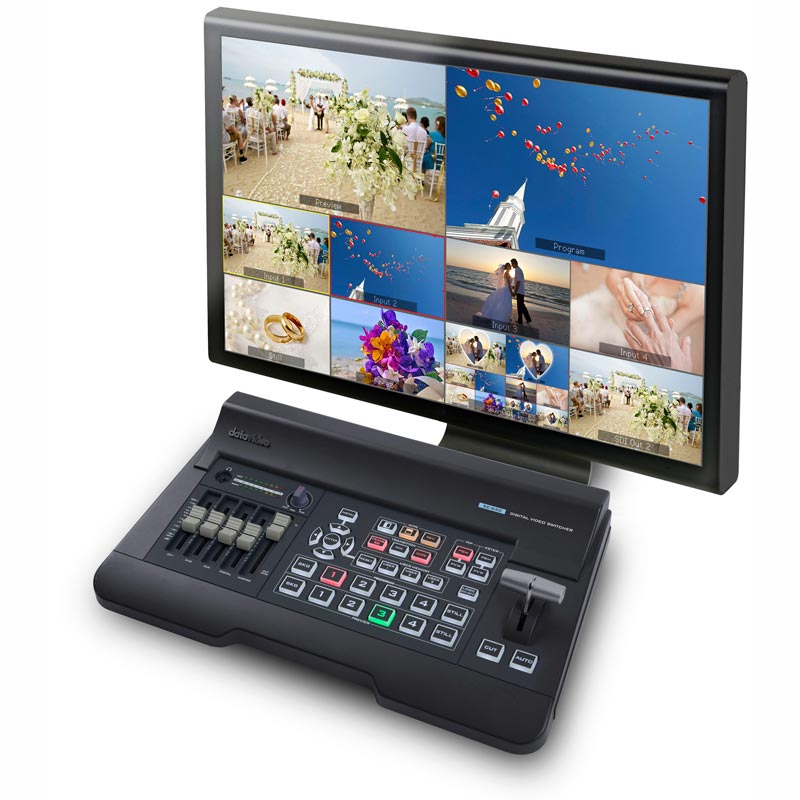

SE 650 4-Channel 1080p HDMI Video Presentation Switcher

Specifications

Video Standard	Full HD & SD
Video Format	1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4 All 4, repeatable
Video Input	2x HD-SDI 2x HDMI
Computer Graphic Interface	2 via HDMI
Video Output	2 x HDMI (1 is MV, 1 is Assignable) 1 x HD-SDI (Assignable)
Down-converted Output	Yes
Built-in Multi-view Monitoring Out	HDMI & SDI assignable
Analogue Audio Input	1 x Stereo RCA (L/R) 2 x Mono Microphone
Analogue Audio Output	1 x Stereo RCA (L/R) 1 x Stereo headphone (Mini Jack with volume control)
Embedded Audio Support	Input 2 channels, Output 2 channels
A+V Switching	Yes
Chromakey	Two
USK	2x Keyer support Chromakey/ Linear/ Luma Key
DSK	1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture	One
Logo Insertion	One
Still Store	500
Effects	FTB, Cut, 32 Wipe with border
Transition Preview	Full transitions preview
Sync / Reference In/Out	Built-in Genlock (internal)
Tally Output	1x D-sub 15pin, dual color
PC Remote Control	DVIP (Ethernet)
Built-in Audio Mixer	Yes, 4 channels
Special Features	Free Virtual Set and Stinger transition included
Chassis	Unibody
Dimension (LxWxH)	400 x 250 x 82 mm
Weight	1.9 Kg
Power	DC 12V, 29W
Operating Temp. Range	0~40 °C
Options	CB-46/47/60/61/62
What’s in the box	1 x SE-650 product 1 x AD Switch DC 12V with AC Cord 1 x Thank You Card

SDI and HDMI inputs on a Budget

The SE-650 is Datavideo’s most affordable SDI+HDMI switcher available. With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

Easy on the outside. Professional on the inside.

The SE-650’s intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students. Though it’s geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey.



Stunning video effect enrich the scene	Built-in Audio Mixer
Down stream keyers(DSK) , up stream keyers(USK) and picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.	The SE-650’s built-in audio mixer means that you’ve got everything you need to control your audio input levels. For most productions, this means that there’s no need to buy a separate external audio mixer.


Built-in animations and backgrounds	User memories
Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.	SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher


Professional 10-bit processing switcher
Providing you the best and professional quality of video processing.
