HS-1300 6-Channel HD Portable Video Streaming Studio |
Made for mobility. Made for the web. | Compact design suited for medium-sized productions |
![]() |
![]() The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs: ( SDI x 2 + HDMI x 3) Built-in H.264 recorder for SD cards |
The HS-1300 brings a new level of simplicity to production workflows. You’ll set up faster and easier thanks to its portable “briefcase” design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time. |
The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you’ll have video files that can be immediately uploaded to the video network of your choice or to your website. |
Streaming to Facebook Live, YouTube, Twitch, and More
|
|
|
|
The built-in H.264 encoder allows you to stream your show to virtually any CDN like Facebook, YouTube or Twitch in no time. It also supports different bitrate for recording to SD card and streaming function |
|
Built-in virtual set backgrounds |
Built-in 9 animations |
|
![]() |
Choose between a variety of pre-saved virtual set backgrounds. |
Choose between a variety of pre-saved animated stinger transitions for your show. |
User memories |
17.3” LED Backlit Monitor |
|
![]() |
You can save a complex process into a user memory, turning multiple tasks into a one-finger job. |
Compressed videos are saved on two 2.5″ SSD drives. If one disk is full, the recording will automatically continue on the second disk. It’s easy to expand storage for continuous recording. (Support Samsung 860 Pro SSD only) |
Seamlessly Compatible with dvCloud |
|
|
This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders. You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform. Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP. For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv
|
Get the most out of your streaming hardware using DVCloud. The HS-1300 is seamlessly compatible with Datavideo’s DVCloud service. |
|
|
|
Specifications |
Video Standard |
HD |
Video Format |
1080i 50/59.94/60Hz |
Input Routable / Crosspoint |
All 6, repeatable |
Video Input |
4 x HD-SDI |
Computer Graphic Interface |
2 via HDMI |
Down-converted Output |
N/A |
Video Output |
3x HDMI 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview |
Audio Input |
2x Balanced XLR |
Audio Output |
1x Stereo headphone |
Digital Embedded Audio Support Input |
Input 2 channels, Output 2 channels |
A+V Switching |
Yes |
USK |
2x USK support Chromakey |
DSK |
2, support Lumakey & Linear key (Key / Fill) |
Picture in Picture |
1 |
Logo Insertion |
N/A |
Built-in Audio Mixer |
N/A |
Built-in Monitor Display |
17.3” HD TFT LED backlit, 1600×900 pix |
Built-in Intercom & Tally |
N/A |
Streaming Video Encode |
H.264 / AVC, Main/ High Profile |
Streaming Audio Encode |
AAC-LC |
Streaming Protocol |
TS over TCP/UDP (unicast & multicast) |
Streaming Control |
Web browser UI for configuration and control Socket commands |
Recording File System |
FAT, exFAT, NTFS |
Recording File Format |
MP4 |
Recording Setting Control |
Web UI for system configuration and control |
Special Features |
Streaming encoder and recorder |
Dimension (LxWxH) |
455 x 355 x 134 mm |
Weight |
16.3 Lbs (7.4 kg), Reinforce Plastic Case |
Power |
DC 12V, 5A |
Operating Temp. Range |
0~40 °C |
Options |
CB-22H/23H/46/47/60/61/62 |
What’s in the Box | |
---|---|
Content |
1 x HS-1300 Product |
Drive Compatibility |
For a list of verified compatible drives, visit the Drive Compatibility Page |

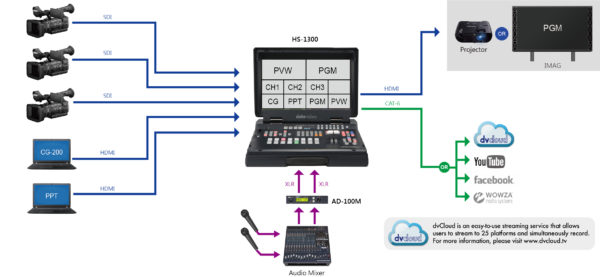

Workflow |
![]() |
![]() |
![]() |
Gallery |
![]() |
![]() |
![]() |
![]() |
